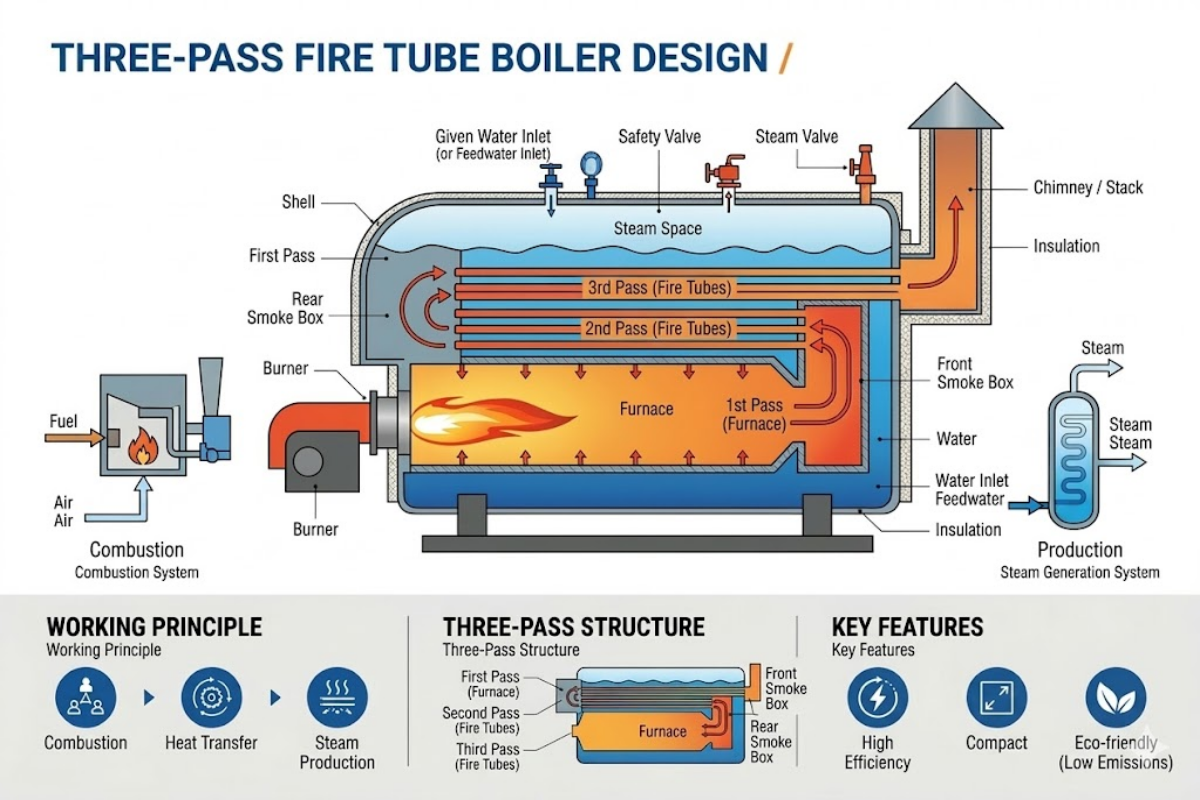

Three-Pass Fire Tube Boiler Design: Working Principle, Components, and Applications

If choosing a industrial boiler for steam or hot water generation, then likelihood is that you will come across a three-pass fire tube boiler design. This design takes the combustion gases through three separate passes inside the boiler shell, before the exhaust gases reach the stack, which extracts more heat from the fuel. With this design, there are higher thermal efficiency and lower fuel costs, compared to single-pass or two-pass designs.

We break down how a three-pass fire tube boiler design works, what each part does, how it compares to a water tube boiler, and what to watch for during maintenance — whether you are an engineer writing specs or a facilities manager evaluating boiler choices.

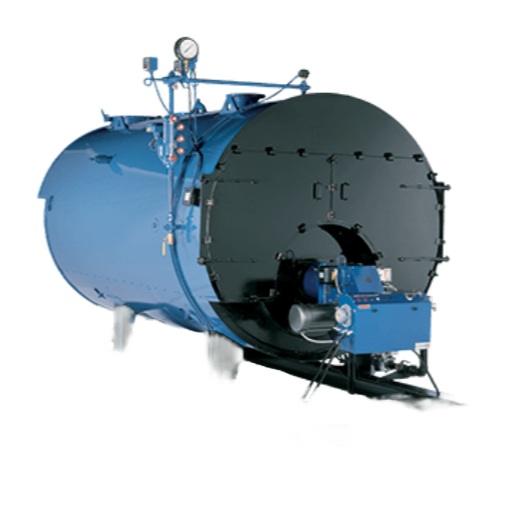

What Is a Three-Pass Fire Tube Boiler?

A three-pass fire tube boiler is a type of shell boiler in which hot combustion gases pass through tubes in water, completing three cycles inside a boiler before exiting via the stack. The furnace itself is pass number one. After gases change direction in the rear chamber, they pass rearward through a number of tubes (second pass), change direction again, then move back rearward through another set of tubes (third pass). The multiple passes each allow for further heat accumulation in the corresponding surrounding water.

This configuration remains the most frequently used industrial steam and hot water boiler design. You are likely to find three-pass firetube boilers — packaged all-in-one units delivered ready for installation, complete with burner, controls, and pressure vessel. This same three-pass configuration is used on both steam boilers as well as hot water boilers.

Industry professionals tend to specify this all-in-one packaged design for facilities that require dependable steam at pressures below 250 psi. By adding an additional pass of tubes, stack temperature is diminished significantly, and this offers direct fuel advantages over the life of the boiler.

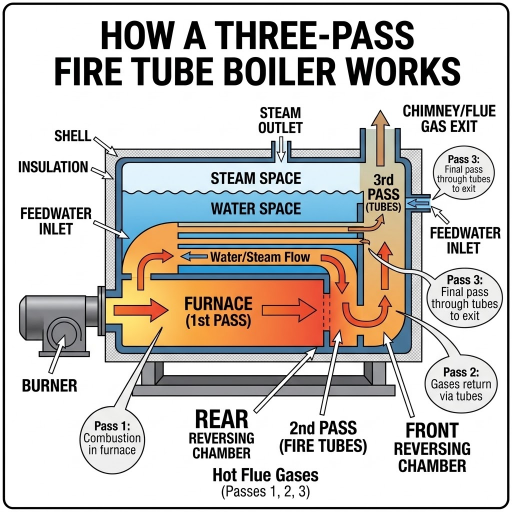

How a Three-Pass Fire Tube Boiler Works

At its core, the fire tube boiler working principle is about routing hot combustion gases through a series of water-submerged tube passes. A longer gas path inside the boiler allows more time and surface area for releasing heat. Here is how the gas travels in each stage of a three-pass fire tube boiler design.

Pass 1: The Furnace

The combustion process initiates in a furnace, which is cylindrical with high flare dimensions (sometimes called a Morrison tube or the combustion chamber). Natural gas, oil or fuel (both low and high) is injected in and creates the hot flue gas between 1,800°F and 2,400°F (980–1,315°C). As the gas travels from head to foot inside this furnace, radiant heat transfer occurs directly to the surrounding water through the furnace wall. Some 65% of all heat transfer happens during this first pass.

Pass 2: Rear Reversal Chamber to Front

At the rear of the boiler, the gas passes through a reversal chamber — a sealed space that redirects the flow 180 degrees. From there, the gases pass through a bank of smaller-diameter smoke tubes and continue traveling forward, back toward the burner end.

Convective heat transfer drives up to another 25% of the remaining thermal energy into the water through these tubes. A rear tube sheet separates the reversal chamber from the water space, and the tube ends are expanded or welded into the sheet.

Pass 3: Front Chamber to Stack Outlet

A second reversal chamber at the front of the boiler redirects the gas once more. Flue gas enters a final bank of smoke tubes and proceeds rearward toward the smokebox. By this stage, the gas temperature has dropped to roughly 350–500°F (175–260°C), depending on the operating pressure and boiler load. Only about 10% of the heat transfer occurs in the third pass, but it’s enough to drop the stack temperature well below what a two-pass boiler achieves.

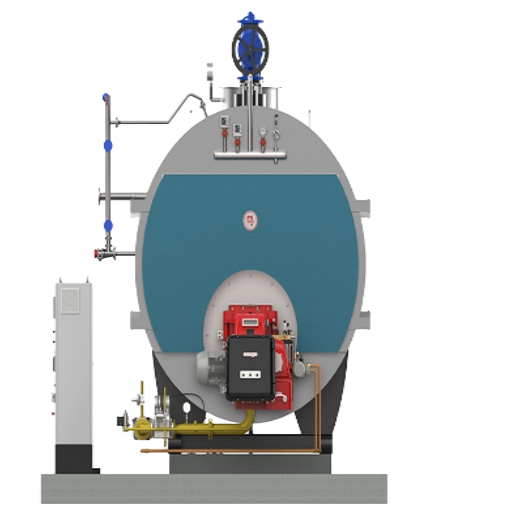

Key Components of Three-Pass Fire Tube Boilers

Knowing the main elements of a three-pass fire tube boiler helps with specifying a suitable unit and planning maintenance intervals. Below are the primary parts and what each one does.

Pitting corrosion of the tube sheets is identified when examined on scheduled shutdowns. Adjacent to the waterline, this often indicates poor deaeration or low sulfite residual within the feedwater treatment programme. Fail to detect tube sheet deterioration, and there may be an expensive emergency repairs.

Fire Tube vs Water Tube Boiler: Key Differences

When comparing fire tube vs water tube boiler designs, the key difference is where the water and gas are located. In a fire tube boiler, the hot gases run through the inside of the tubes and the water runs around the outside. In a water tube boiler, the water runs through the inside of the tubes and the combustion gases run around the outside of the tubes.

This is the fundamental difference which led to all downstream differences in pressure capacity, response time, footprint and cost.

When to opt for a fire tube boiler: Your site requires steam or hot water at pressures less than 250 psi, capacity is less than 800 HP, space is constraint and there is desire to minimize the capital cost by providing as less as possible field assembly. three-pass fire tube boilers are designed to handle intermittent load pattern very effectively due to large volume of water provide as a thermal store.

When to choose a water tube boiler: You need a high-pressure steam (>350 psi), super-heated startup conditions are necessary, the steam load will be above 20 Ton/hr, or your process demands super-heated steam. Power generation and large chemical plants tend to fall into this category.

Efficiency and Heat Transfer Performance

The number of gas passes in a fire tube boiler design directly impacts how much heat is taken from the combustion gases before they exit the stack. More passes lead to higher heat transfer surface, lower exhaust temperatures, and higher fuel-to-steam efficiency.

A typical well-maintained three-pass fire tube boiler attains 86-89% fuel-to-steam efficiency under standard operating conditions. DOE Steam Tip Sheet #25 points out that four-pass boilers can achieve slightly higher efficiency, but the balanced industrial approach of three-pass remains dominant due to its performance at competitive costs and mechanical regularity.

There are two means for heat transfer in a three-pass boiler. Radiant heat transfer is primarily involved in the furnace (pass 1), where high flame temperature conduct heat through radiation to the furnace walls. Convective heat transfer is dominant in Passes 2 and 3, where gas velocity across tube surfaces makes the pulse. The total heating surface area (encompassing furnace walls, tube sheets, and all tube banks) defines the overall rate of energy capture.

Fuel type influences combustion temperature and efficiency as well. Natural gas produces cleaner combustion with less fouling on tube surfaces, allowing existing heat transfer rates for longer. Oil burning equipment produces soot that acts as an insulating layer on tubes, lower efficiency by 1-2% if not cleaned regularly. Dual-fuel burners provide operational flexibility to switch based on fuel availability and price.

Common Applications and Sizing

three-pass fire tube boilers are utilized by many industrial and commercial plants. Their packaged design simplifies installation: most units arrive entirely assembled, with utility hookups and flue piping required on site. This aspect alone makes them suitable for plants with limited boiler room or a desire for rapid commissioning.

Taiguo produces three-pass fire tube boilers of the entire capacity spectrum, from small 1-ton/hr packages ideal for small facilities to 20-ton/hr industrial boilers suitable for process intensive plant establishments. All units are developed as horizontal, packaged systems that comply with ASME BPVC and local jurisdictional standards.

When selecting an industrial steam boiler, three-pass fire tube boilers are the best value and fit in the under-800 HP range for price per HP, compact footprint, and long-term reliability.

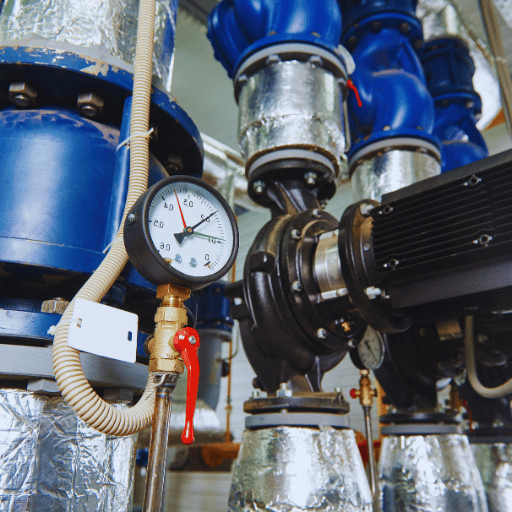

Maintenance, Inspection, and Repair Tips

Periodic maintenance keeps a three-pass fire tube boiler running safely and at peak efficiency. Missing tube surfaces, water treatment, or safety equipment causes avoidable failures – wasting nearly as much as unplanned downtime does.

The DOE Best Management Practice #8 recommends implementing a documented maintenance program covering pre-operation checks and testings, weekly and monthly, and internal inspections annually. Here’s a user-friendly, field-tested checklist.

• ✔
  Daily: Check water level gauge, pressure gauge, and steam output. Verify burner flame pattern through sight glass.
• ✔
  Weekly: Test low water cut-off by blowing down the float chamber. Record flue gas temperature at the stack.
• ✔
  Monthly: Perform surface and bottom blowdowns to remove sludge and dissolved solids. Test safety valve by hand lift.
• ✔
  Annually: Open the boiler for internal inspection. Clean tube surfaces (fire side and water side). Inspect tube sheets for pitting, corrosion, or ligament cracking. Verify all weld seams on the shell and furnace.
• ✔
  Every 2–3 Years: Perform hydrostatic test to verify pressure vessel integrity. Replace gaskets on manhole and handhole covers.

An annual tube sheet inspection reveals actually two forms of damage: oxygen pitting from the quality of feedwater treatment, and erosion at the tube ends from high-velocity gas flow. These flaws can repaired by tube rolling (pressing the tubes back into the sheet) or, in more serious conditions, by welding tube-sheet joints as required by the ASME repair code. Detecting these problems early is the most cost-effective solution in avoiding a full tube replacement in the future. Early correction in an existing one prevents tube leaks that could force a full shutdown.
