WDR Series electric steam boiler

WDR Series Electric Steam Boiler — Industrial Zero-Emission Steam Generator from China Manufacturer

The WDR Series horizontal electric steam boiler redefines industrial steam generation with 98%+ thermal efficiency, zero on-site emissions, and fully automatic PLC control. Engineered with stainless steel electric heating tubes and an electrical control cabinet separate from the boiler body, this series electric steam boiler delivers 500–6,000 kg/h saturated steam for food processing, pharmaceutical, textile, and chemical industries — at factory-direct wholesale pricing from our Grade A boiler manufacturing facility in China.

98%+
Thermal Efficiency
6,000
Max kg/h Steam
20,000
Hrs Tube Life
100+
Countries Served
Request Factory-Direct Pricing
ASME U/S CE PED CCC ISO 9001 Grade A Mfg.
Henan Taiguo Boiler Group Co Ltd factory and manufacturing facility for WDR series electric steam boilers
Henan Taiguo Boiler — Grade A Manufacturing Facility 01 / 05

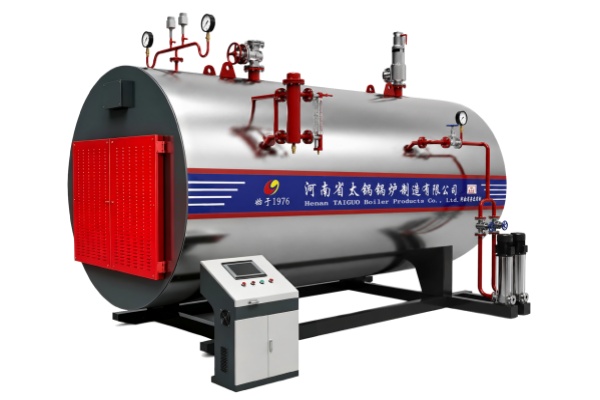

WDR Series electric steam boiler product overview with stainless steel body and PLC control system
WDR Series — Electric Steam Boiler Overview 02 / 05
WDR horizontal electric steam boiler side view showing heating chamber and steam outlet
WDR Boiler — Horizontal Structure Detail 03 / 05
WDR Series electric steam boiler installed at industrial facility with separated control cabinet
WDR Installation — Industrial Application 04 / 05
WDR electric steam boiler stainless steel electric heating tubes and pressure vessel components
WDR Boiler — Engineering & Components 05 / 05

Product Gallery — WDR Series

Product Overview

WDR Electric Steam Boiler: Advanced Industrial Electric Heating Technology

Designed for modern industry, which demands clean steam generation without the pollution from combustion. These units offer state-of-the-art PLC control, ASME Boiler certification, and stainless steel for optimal performance and a long operating life.

98%+
Thermal Efficiency
Zero
On-Site Emissions
20,000h
Element Service Life
ASME
Multi-Certified

98%+ Boiler Thermal Efficiency

Direct electric heating has zero stack losses and converts nearly all input energy into steam. With PID control, energy is saved during variable-load periods by reducing steam production to match and maintain the required steam output. This results in lower costs for continuous-duty applications.

Zero On-Site Emission & NOx

All combustion pollutants are eliminated. No flue gas, particulate matter, NOx, or SOx is generated. This helps the facility meet environmental requirements, supports the facility's net-zero goal, and qualifies for the IRA clean energy tax credit.

Electrical Control Cabinet Separate Design

The control PLC cabinet is physically separated from the boiler for safe electrical isolation, maintenance, and troubleshooting. This design ensures full operational autonomy (automatic start, heater control, alarms, and shutdown).

Horizontal Electric Steam Boiler Layout

The horizontal configuration enables consistent water-level management and even heat distribution across the electric stainless steel heating tubes. A furnace arrangement optimized for space allows the furnace to maintain maximum heat-transfer surface area while keeping the boiler room footprint to a minimum, making installations more convenient.

Stainless Steel Heating Elements (20,000h Life)

Electric heating tubes are made of premium stainless steel with surface load optimization and a 20,000 service life. Durable industrial-duty cycles are supported by reinforced welded industrial-duty cycles with rated flange connections and ceramic insulation.

ASME / CE / CCC Multi-Certification

Constructed to the guidelines of the ASME Boiler & Pressure vessel code (and CE marking & CCC certification pathways). These Structured ISO 9001 (Quality Management System) procedures govern each process, ranging from the choice of raw materials to final Hydrostatic testing and commissioning documentation.

Technical Specifications

WDR Series Electric Steam Generator — Full Specifications Table

Complete technical parameters for the WDR Series industrial electric steam boiler lineup. All models feature horizontal layout, stainless steel heating elements, PLC stepwise automatic control, and electrical control cabinet separate from the boiler body.

Parameter WDR0.5 WDR1 WDR1.5 WDR2 WDR3 WDR4 WDR6
Rated Steam (t/h) 0.5 1 1.5 2 3 4 6
Electric Power (KW) 375 750 1050 1500 2250 3000 4500
Rated Pressure (Mpa) 0.7/1.0/1.25 0.7/1.0/1.25 0.7/1.0/1.25 0.7/1.0/1.25 0.7/1.0/1.25 0.7/1.0/1.25 0.7/1.0/1.25
Rated Steam Temp. (℃) 170/184/194 170/184/194 170/184/194 170/184/194 170/184/194 170/184/194 170/184/194
Heat Efficiency (%) 99 99 99 99 99 99 99
Size L×W×H (mm) 2666×1536×1566 3000×1400×1650 3500×1600×1750 4000×1700×1950 4312×2124×2242 4380×2400×2662 4908×2671×3390
Reference Weight (kg) 1263 2100 2600 3100 5450 5203 6600
NOTE: All WDR Series models support rated pressure options of 0.7 / 1.0 / 1.25 Mpa with corresponding steam temperatures of 170 / 184 / 194 ℃. Specifications may vary slightly depending on configuration. Contact us for custom requirements.
Industry Challenges & Solutions

Common Boiler Challenges Your Facility Faces — And How the WDR Electric Steam Boiler Solves Them

There are problems industrial buyers face when purchasing steam boilers. The WDR Series electric steam boiler is designed to address all of these problems with advanced technology and measurable results.

Challenge

EPA Compliance Pressure & Rising Emission Regulations

As US EPA regulations and net-zero state mandates are implemented, ESG reporting is affecting operating expenses and the risks associated with using combustion boilers. Facilities face emissions-related penalties and reputational damage from NOx, SOx, and particulates.

WDR Solution

Zero On-Site Emission — Full Regulatory Compliance

WDR Series eliminates all combustion-related NOx, SOx, and particulates. No need for chimneys or emission permits. Environmental compliance paperwork is made easier, and the WDR Series qualifies for the IRA clean energy tax credit.

Challenge

Volatile Natural Gas Prices & Unpredictable Operating Costs

Gas price volatility translates into budget unpredictability for facilities that depend on gas-fired steam boilers. Transportation costs, storage costs, and fuel supply contracts further erode profitability.

WDR Solution

98%+ Thermal Efficiency + Off-Peak Electricity Savings

Electric heating achieves up to 98% thermal efficiency and zero stack losses, compared with gas boilers, which have 85-92% efficiency. Real-time demand control optimizes heating elements to adjust and match demand. Off-peak electricity savings translate to 30-50% lower operating costs. Energy bills become more predictable, improving cash flow planning.

Challenge

Distrust of Chinese Boiler Suppliers — Quality Uncertainty

B2B customers must address quality, certification validation, and post-sale support. Distance, language differences, and time zone mismatches lead to unaddressed compliance issues and procurement risks.

WDR Solution

Grade A Licensed Factory — ASME/CE Certified — 100+ Countries

Henan Taiguo is recognized for holding China's Grade A Boiler Manufacturing License. Each WDR unit is ASME, CE, and ISO 9001 certified and documented. This, along with a 45-year history, exports to 100+ countries, and investment in an English-speaking engineering resource, mitigates procurement risk.

Challenge

Complex Installation & Difficult Boiler Room Integration

With traditional fuel-fired boilers, there is a need for a chimney, gas piping, fuel storage, a full ventilation system, and fire safety upgrades. This leads to installation timelines extending for months, disrupting production timelines, and inflating project costs.

WDR Solution

Plug-and-Steam Design — No Chimney, No Gas Piping

The WDR Series requires only an electrical connection and a water supply. No chimney, no gas piping, no fuel storage, no ventilation upgrades. The compact horizontal design optimizes boiler control and cabinet spacing, reducing the boiler room footprint by up to 40%. Standard installations and commissioning are completed in 3-5 days.

Factory Authority

Why Choose Our China Electric Steam Boiler Manufacturer

Henan Taiguo Boiler Products Co., Ltd. is a respected B2B partner with many years of experience in boiler manufacturing and industrial electric steam.

Reliable Electric Boiler Supplier & Wholesale Partner for Global B2B Clients

We are a Grade A boiler manufacturer in China and use advanced production technologies, including CNC plasma cutting and automated welding. This allows us to balance competitive pricing with quality industrial electric steam boilers. A dedicated engineering team is assigned to each project and provides support from initial consultation and custom boiler design through installation, commissioning, and after-sales support worldwide.

  • Grade A Manufacturing License

    China's top tier for the manufacturing of pressure vessels. Includes the production of complex boilers, such as high-pressure industrial electric steam boilers.

  • ASME, CE, CCC, ISO 9001 Certified

    Certifications fit for every country and every project. Documentation is prepared for each stage to ensure compliance with international customs and regulatory requirements.

  • Exported to 100+ Countries

    Extensive experience in logistics and compliance for North America, Europe, the Middle East, Southeast Asia, Africa, and South America.

  • End-to-End Service

    Consulting, custom CAD/P&ID designs, turnkey installations, PLC commissioning, operator training, and 24/7 remote support for diagnostics.

  • Wholesale and Factory Direct Pricing

    Cut out the middleman. Pricing is based on your steam capacity, voltage, and control systems. Discounts for multiple units.

1976
Established — 45 Years
and counting.
100+
Countries
Supplied
Grade A
Manufacturing
License
8
Integrated QA
Systems
Inspection Protocol QA-WDR-008

Quality Assurance Highlights

WDR Series suppliers are managed, processes are reviewed, and products are verified through eight distinct quality systems. Before shipment, every WDR Series unit is reviewed for hydrostatic standards, insulation, heater sequencing, control cabinet I/O, and FAT/SAT documentation.

Industry Applications

WDR Electric Steam Boiler Applications

The WDR Series electric steam boiler empowers critical industries that demand clean saturated steam, precise control, and high thermal efficiency. As a horizontal electric steam boiler, it eliminates combustion-related emission and NOx, delivering environmental protection without sacrificing steam capacity. From food processing to pharmaceutical and textile production, this series electric steam boiler provides reliable electric heating, long working life, and consistent boiler operation.

Electric Steam Boiler for Food Processing — Clean Steam, Zero Contamination

Food processors rely on clean steam to generate steam for blanching, sterilization, CIP, and packaging, and the WDR Series electric steam generator boiler is engineered to meet these hygiene-critical needs. With more than 98% boiler thermal efficiency and fully automatic PLC control, the electric boiler maintains set pressure and temperature to make sure the boiler supports consistent product quality.

The cabinet separate from boiler body design enhances safety in the boiler room, while stainless steel electric heating tubes and precise weld and flange construction reduce contamination risk. Quiet operation, zero on-site pollution, and simple installation accelerate commission and ongoing compliance with food safety standards.

Applications
  • Blanching, cooking, and steam-jacketed kettle heating
  • Pasteurization and UHT sterilization
  • CIP (Clean-in-Place) and sanitization systems
  • Retort and autoclave processing
  • Drying, dehydration, and moisture control
  • Steam tunnel shrink-sleeve labeling and packaging

Recommended Configuration

Steam Capacity500 – 4,000 kg/h
Pressure0.7 – 1.0 MPa
Model RangeWDR 0.5 – 4.0
Key FeatureClean steam / No contamination
ComplianceHACCP / FDA / USDA ready
Get Food Industry Quote
Boiler Accessories

WDR Series Electric Steam Boiler — Standard Accessories & Components

All the WDR Series electric steam boilers come with the appropriate accessories that are designed for safety, efficiency, and long service life. Each component is chosen to complement the PLC control system and the horizontal design of the boiler.

WDR Series Electric Steam Boiler PLC Control Cabinet with LCD Display

Electric Control Cabinet

Benefit of safety and maintenance is accrued from separating the PLC cabinet from the boiler body. It displays real-time boiler status on an LCD touchscreen interface, which includes steam pressure, water level, heating element status, and fault alarms. Start-up sequencing, boiler group modulation, and multi-layer safety interlocks are some of the facilities the fully automatic system provides in protecting against dry firing and overpressure.

PLC Control LCD Display Separate Cabinet
Centrifugal Feed Water Pump for WDR Electric Steam Boiler

Feed Water Pump

The centrifugal feeding water pump ensures the correct water level inside the boiler drum by being operated automatically. Controlled by the PLC system and water-level sensors, the pump automatically starts and stops to reflect the real-time demand and hence prevent under- or over-watering. Sizing of the pump to match the boiler's rated evaporation capacity ensures efficient water supply to the boiler under conditions of continuous or transient operating loads.

Centrifugal Auto Level Control Matched Capacity
Spring-Loaded Safety Valve for WDR Series Electric Steam Boiler Overpressure Protection

Safety Valve

The crucial overpressure protection device on every steam boiler is the spring-loaded safety valve which is factory-set for the release of excess steam only if internal pressures exceed the rated working limit. As a result, dangerous pressure build-up and probable vessel failure are averted. In conclusion, all WDRs are equipped with a safety valve meeting ASME and the national pressure vessel standard, making export market compliance inevitable.

Overpressure Relief ASME Rated Factory Calibrated
Steam Distribution Header Manifold for WDR Electric Boiler System

Steam Distribution Header

The steam manifold collects the steam after the boiler and output and evenly distributes it to various processing lines or equipment by branch outlet nozzles. It dampens the pressure fluctuations, provides extra moisture separation for better steam quality, and allows the isolation of particular processing lines for maintenance without any shutdown of the total system. Steel headers are fabricated with welded construction.

Steam Manifold Multi-Outlet Pressure Stabilization
Industrial Pressure Gauges and Control Valves for WDR Steam Boiler Monitoring

Valves & Gauges

The WDR Series comes with Industrial valves and Bourdon pressure gauges for accurate monitoring and control. Included are main steam stop valves, blow down valves, check valves, and water-level gauge glasses. Pressure and temperature gauges are mounted on the front of the boiler for easy reading. These instruments provide operators with real time visibility of the boiler operating state, and help with safe and compliant operation.

Pressure Gauge Stop Valve Water Level Glass
Automatic Water Softener Treatment System for WDR Electric Steam Boiler Scale Prevention

Water Softener

With an automatic water softener, Ion-exchange resin regeneration eliminates water hardness minerals, which include calcium and magnesium. The untreated hard water causes scale build-up on heating elements which drastically reduces thermal efficiency and shortens tube life. By softening the water that enters the boiler, the system protects the stainless steel heating elements, reduces descaling maintenance, and extends the overall life of the boiler.

Ion Exchange Scale Prevention Auto Regeneration

Customization Available — All accessories are factory-matched to your WDR Series model and steam capacity. Custom configurations including upgraded control systems, multi-boiler header assemblies, and chemical dosing systems are available upon request. Contact our engineering team for a tailored accessory package for your specific application.

FAQ

Frequently Asked Questions (FAQs)

WDR series electric steam boiler is engineered to provide quality steam generation. Featuring electric heating elements in a tubular configuration, the boilers use LCD intelligent control to achieve quick water heating and steam generation, and maintain water temperature in the boiler. The precise controllers and fully automated operation minimize energy wastage making it a green solution while still delivering output of 1ton per hour in the right models.

As with all heating appliances, the WDR series hot water boiler installation must follow all the guidelines of the manufacturer. Technicians must ensure all the components of the hot water boiler are correctly configured, the wiring of the electrical components is correct, and all actions of the boiler are within the prescribed limits on the commissioning of the boiler. Maintenance involves electrical components checks, heating tubes inspections, parts replacements, controller and ldr functional tests, and descaling; this is vital for garment and textile manufacturers.

WDR Series electric steam boilers are the first of their kind to eliminate on-site fuel combustion, pollution, and emissions. The intelligent control optimizes power consumption to match load demand, resulting in overall energy saving. High mechanical strength components and a simple structure eliminate unnecessary operational complexities, improving operational efficiency and reducing heat loss, as well as maintenance downtime, from operational losses.

Yes, the WDR Series can be used in rice mills and other similar heavy-duty industrial applications. With a tube-type heating element and other robust electrical components, the boiler can be relied on to consistently generate steam. The boilers in the range of 1-ton/hour capacity are typically used in the rice milling process for parboiling and drying. The boiler's high mechanical strength and fully automatic control system enable it to perform in fully demanding and continuous operation.

WDR series boilers LCD inteface displa ys the current status and setpoints for the water temperature, and alarms for the faults. Managing steam pressure and temperature are intelligent control algorithms. safety interlocks in the systems are meant for protection against dry firing and over pressure. Reliable water levels are managed with LDR sensors and other level detectors that enhance safety and the working life of the boiler.

With the use of standardized electrical components, tube-type heating elements, and a compact structure the maintenance and installation are simplified for the WDR series. quicker part replacement and installation is made possible with the modular design. service responsiveness is improved with the design. periodic maintenance is made quicker with the simple layout and so are troubleshooting steps.

Keeping up with regular maintenance work—like descaling, checking electrical parts, controller and LCD checks, and replacing worn tubes—someone could expect the WDR series steam boiler to have a long life. Things like proper operations, correct water treatments, scale control, and treatment intervals to comply with the standards for the side of the manufacturer all contribute to maximizing the working life of the boiler.

Certainly, the WDR series full automatic electric steam boiler is suitable for small factories, garment factories and single-shift operations because of its simplicity, quick start up and low on-site emission worries. It is also energy saving and offers reliable steam generation for washing, dyeing, or heating and can be produced at required outputs like 1 ton.
